2N 1120120 2N ACCESS COMMANDER

Details

The 2N Access Commander Box 2.0 is a powerful minicomputer that comes with pre-installed software to allow you to manage your access control system. You don’t need your own hardware or access to an existing server. Just unbox it, plug it in, and start managing!

he compact design allows you to install this computer easily - even in environments with limited space. The fanless design guarantees quiet and reliable operation, and the user-friendly web-based configuration makes it easy to manage your access control system.

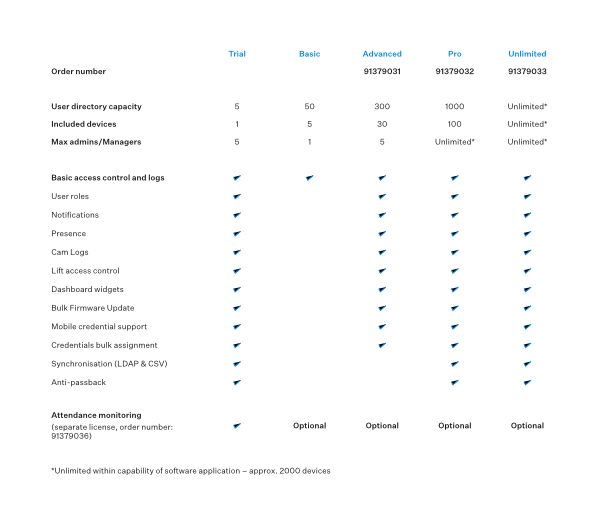

The 2N Access Commander Box 2.0 also includes a basic licence for up to 5 devices. System administrators can start using it immediately in smaller installations. In large-scale installations, you can use one of the paid licenses Simply order it and upload it to your system.

Specifications

General
Distribution:	The 2N^® Access Commander is distributed as an image for server installation (2N^® Access Commander Virtual Machine) or as a software pre-installed on mini-PC (2N^® Access Commander Box 2.0).

2N^® Access Commander Virtual Machine
Introduction:	The 2N^® Access Commander is an access control software distributed as a complete package in the .OVA format. It is intended to be imported into the virtual systems such as Oracle VM VirtualBox, VMware (v6.5) or Microsoft Hyper-V.
	The server should be up and running 24/7 as it records all logs from connected 2N devices.
Example of HW requirements:	Below are the minimum suggested requirements for an installation of up to 500 devices (2N IP intercoms and access units) connected to the 2N^® Access Commander and 7,000 users.
Operating system:	any 64-bit system (Windows, Linux, macOS, Solaris)
CPU:	2 GHz & 2 cores (64-bit)
RAM:	2 GB
Internet connectivity:	needed for the software upgrade (512 kbps at least)

2N^® Access Commander Box 2.0
Introduction:	The 2N Access Commander Box 2.0 is our access control software pre-installed on an ultra-compact, small and powerful computer.
Dimension:	57.6 x 127.5 x 132 mm
CPU:	3.40 GHz (Intel^® Processor N100)
Hard drive:	250 GB (980 NVMeTM M.2 SSD)
RAM:	16 GB (DDR4 3200 CL22 SO-DIMM)
Connectors:	VGA, HDMI & DisplayPort 4x USB 3.2, 3x USB 2.0, 2.5 Gbit LAN
Operating temperature:	0°C to +50°C
Storage temperature:	-40°C a +85°C
Connected devices:	7,000
Users:	200,000
Users per group:	1,500
Supported browsers
Optimized for:	Google Chrome browser (version 60 and higher)
Other supported browsers:	Mozilla Firefox (version 55 or higher), Microsoft Edge (version 40 and higher)

General
Introduction:	The 2N Access Commander Box 2.0 is our access control software pre-installed on an ultra-compact, small and powerful computer.
PC specifications
Dimension:	57.6 x 127.5 x 132 mm
CPU:	3.40 GHz (Intel^® Processor N100)
Hard drive:	250 GB (980 NVMeTM M.2 SSD)
RAM:	16 GB (DDR4 3200 CL22 SO-DIMM)
Connectors:	VGA, HDMI & DisplayPort 4x USB 3.2, 3x USB 2.0, 2.5 Gbit LAN
Operating temperature:	0°C to +50°C
Storage temperature:	-40°C to +85°C

Limitations
Connected devices:	7 000
Users:	200 000
Users per group:	1 500
Supported browsers
Optimized for:	Google Chrome browser (version 60 and higher)
Other supported browsers:	Mozilla Firefox (version 55 or higher), Microsoft Edge (version 40 and higher)

Features

CENTRALISED DEVICE MANAGEMENT

Update firmware in bulk and in a few clicks. It ensures optimal performance and security of devices. Plus you can see immediately if devices are all online and check their door states.
LOGS AND NOTIFICATIONS

Respond more effectively to designated events thanks to instant alerts by email or in the notification channel. Get the full picture with camera logs offering snapshots surrounding chosen events.
MULTI-COMPANY SITES

Admins may control the whole site whilst managers may be granted set privileges in their own company. This makes 2N^® Access Commander an ideal solution for buildings with several companies.
FREE MOBILE CREDENTIALS

Mobile access control, powered by WaveKey, is fully integrated in the software. No separate reader programming tools, no need to use a 3rd party mobile credential gateway and best of all, no charge for credentials.
ATTENDANCE MONITORING

2N^® Access Commander offers native attendance monitoring features. Track user attendance, view reports in the software and export records to PDF or CSV.
VISITOR CREDENTIAL MANAGEMENT

Easily onboard visitors, granting time-limited access to the areas you choose. Issue credentials remotely for self-serve access and maintain an audit trail for compliance.
HIGHLY OPEN TO INTEGRATION

A REST API offers endless integration possibilities. LDAP support and custom mappings streamline workflow with user directories. CSV sync provides low level integration with simpler systems.
AREA RESTRICTIONS

Tighten security and enforce access policy compliance with the Anti-passback function. Restrict how many people are allowed in an area with Occupancy Management.

SKU	1120120
Warranty	5 Years

2N 1120120 2N Access Commander Box 2.0
