AN-320-SW-F-24 320-series 24-port L2 Managed Gigabit Switch Front Ports

Araknis Networks^®320 Series L2 Managed Gigabit Switch with Front Ports

Get powerful, reliable connectivity for a wide range of network devices with the 320 Series of switches. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. Plus, LEDs on the front and back of the device make it easy to see port status. As with all Araknis switches, you'll have remote management capability via OvrC®. See how the 48-port, 24-port, 16-port, and 8-port models compare to the competition.

Fully Managed

Gigabit

Multi-Mounting

Metal Housing

5 Year Warranty

OvrC Enabled

Dual SFP Uplinks

Multi-Speed Fans

Even More OvrC Capability

With a new design and greater enhanced memory than found in previous generations, the Araknis 320 switch offers additional control via OvrC. With enhanced memory, the switch will automatically identify what device is connected to which port – and is future-ready for additional OvrC functionality as it develops!

Fully Managed

“Fully managed” means full control of the network. This switch provides a full Layer 2 managed solution with functionality to handle the most complex and robust installs.

1Gbps

With a powerful 1Gbps on all ports simultaneously, this switch can support the backbone of an install or simply act as a desktop add.

Dual SFP Uplinks

Use this switch’s SFP ports to provide RJ45 uplinks to other devices, as well as fiber uplinks to extend the network over long distances while getting a stronger signal. Featuring a dedicated fabric, they don’t share a backplane with any other ports on the switch, which means you get a full 1Gbps and don’t have to sacrifice a dedicated PoE port to use them (no combo ports here!)

Improved GUI

A clear, concise GUI with simple VLAN and Link Aggregation setup makes install work a breeze. The improved GUI provides more information, performance data, and insight into switch performance including data transfer and power draw.

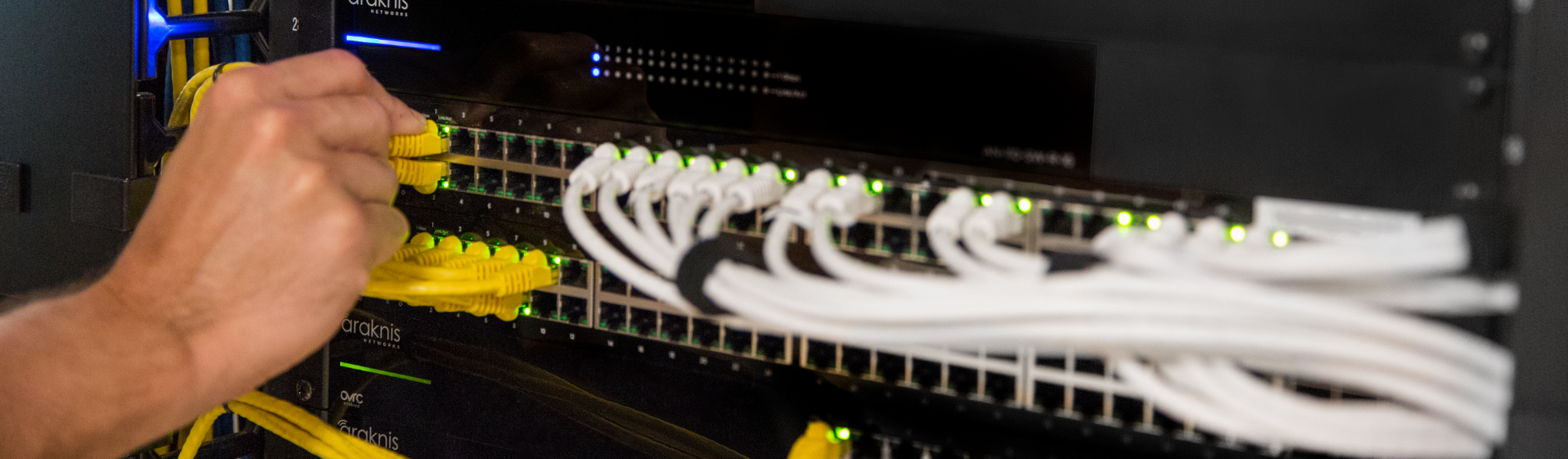

Multi-Mounting

Mounting has never been easier. With its 1U design and available accessories, it easily mounts in a rack, on a wall, or anywhere in between. Included rack ears make for a sleek, left-justified design, while optional center-mount rack ears offer a more traditional look. (To order center-justified rack ears, visit the corresponding product page.)

Ryft® LED & Mechanical Design

Both stylish and informative, these green LED lights indicate power status, port speed (10/100 Mbps to 1 Gbps), and link status. A redesigned faceplate is constructed with industrial materials and a glossy finish, making for a clean design you’ll love to show off.

Fanless Design

This fanless switch allows for a completely silent solution. Its smarter design features honeycomb venting and a temperature sensor that drives the speed of the fans, allowing for efficient, discreet temperature control. (48 port switch actively cooled with multi-speed fans.)

5-Year Limited Warranty

We stand behind our products. Araknis^® Networks X20 Series Switches come with a 5-Year Limited Warranty covering parts and labor for repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty does not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to Snap One® or a designated service center with prior notification and an assigned return authorization number (RA).

Specifications

Attribute	AN-320-SW-F-48	AN-320-SW-F-24	AN-320-SW-F-16	AN-320-SW-F-8
Rack Spacing	AN-320-SW-F-48	AN-320-SW-F-24	AN-320-SW-F-16	AN-320-SW-F-8	1U	1U	1U	1U
RJ-45 1000BASE-T Ports	48	24	16	8
SFP Uplink 1000BASE-X Ports	4	2	2	2
Flash Memory	32MB	16MB	16MB	16MB
SDRAM Memory	256MB	128MB	128MB	128MB
Packet Buffer	1.5MB	512KB	512KB	512KB
MAC Table Size	16K	8K	8K	8K
Switching Capacity	104Gbps	52Gbps	36Gbps	20Gbps
Forwarding Rate	77.4Mpps	38.7Mpps	26.8Mpps	14.8Mpps
Flow Control	802.3x, Back Pressure	802.3x, Back Pressure	802.3x, Back Pressure	802.3x, Back Pressure
Spanning Tree	802.1D (STP) 802.1w (RSTP) 802.1s (MSTP)	802.1D (STP) 802.1w (RSTP) 802.1s (MSTP)	802.1D (STP) 802.1w (RSTP) 802.1s (MSTP)	802.1D (STP) 802.1w (RSTP) 802.1s (MSTP)
VLAN Features	802.1Q VLAN Group Port-based VLANs Private VLANs Voice VLAN	802.1Q VLAN Group Port-based VLANs Private VLANs Voice VLAN	802.1Q VLAN Group Port-based VLANs Private VLANs Voice VLAN	802.1Q VLAN Group Port-based VLANs Private VLANs Voice VLAN
Link Aggregation Features	Static, 802.3ad LACP Max. Ports Per Group: 8 Max Group: 8	Static, 802.3ad LACP Max. Ports Per Group: 8 Max Group: 8	Static, 802.3ad LACP Max. Ports Per Group: 8 Max Group: 8	Static, 802.3ad LACP Max. Ports Per Group: 8 Max Group: 8
Multicast Features	IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave	IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave	IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave	IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 IGMP Querier IGMP Immediate Leave
Jumbo Frame Support	9K	9K	9K	9K
Storm Control	Broadcast/UnKnown Multi-cast/Unknown Unicast	Broadcast/UnKnown Multi-cast/Unknown Unicast	Broadcast/UnKnown Multi-cast/Unknown Unicast	Broadcast/UnKnown Multi-cast/Unknown Unicast
L2 Features	HOL Blocking Forwarding Mode: Store-and-forward Energy Efficient Ethernet: IEEE 802.3az LLDP (IEEE802.1ab)	HOL Blocking Forwarding Mode: Store-and-forward Energy Efficient Ethernet: IEEE 802.3az LLDP (IEEE802.1ab)	HOL Blocking Forwarding Mode: Store-and-forward Energy Efficient Ethernet: IEEE 802.3az LLDP (IEEE802.1ab)	HOL Blocking Forwarding Mode: Store-and-forward Energy Efficient Ethernet: IEEE 802.3az LLDP (IEEE802.1ab)
QoS Features	Priority Queues: 8 queues/port Rate Limiting Ingress: 1 Kbps/1 pps Rate Limiting Egress: 1 Kbps/1 pps DiffServ(RFC2474) Scheduling: WRR CoS: 802.1p, IP ToS Precedence, IP DSCP	Priority Queues: 8 queues/port Rate Limiting Ingress: 1 Kbps/1 pps Rate Limiting Egress: 1 Kbps/1 pps DiffServ(RFC2474) Scheduling: WRR CoS: 802.1p, IP ToS Precedence, IP DSCP	Priority Queues: 8 queues/port Rate Limiting Ingress: 1 Kbps/1 pps Rate Limiting Egress: 1 Kbps/1 pps DiffServ(RFC2474) Scheduling: WRR CoS: 802.1p, IP ToS Precedence, IP DSCP	Priority Queues: 8 queues/port Rate Limiting Ingress: 1 Kbps/1 pps Rate Limiting Egress: 1 Kbps/1 pps DiffServ(RFC2474) Scheduling: WRR CoS: 802.1p, IP ToS Precedence, IP DSCP
Security Features	Port Security (MAC-based) 802.1x PNAC (Port-based) ACL: L2, L3, L4 IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter	Port Security (MAC-based) 802.1x PNAC (Port-based) ACL: L2, L3, L4 IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter	Port Security (MAC-based) 802.1x PNAC (Port-based) ACL: L2, L3, L4 IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter	Port Security (MAC-based) 802.1x PNAC (Port-based) ACL: L2, L3, L4 IP Source Guard RADIUS HTTPS and SSL SSH v2.0 MAC Filter
Management Features	CLI, WEB, Telnet Dual FW Images FW Upgrade: TFTP, HTTP Management Access Filtering: SNMP/Web/Telnet RMON: 1, 2, 3, 9 groups Port Mirroring: One to One, Many to One Remote Ping Cable Diagnostics UPnP	CLI, WEB, Telnet Dual FW Images FW Upgrade: TFTP, HTTP Management Access Filtering: SNMP/Web/Telnet RMON: 1, 2, 3, 9 groups Port Mirroring: One to One, Many to One Remote Ping Cable Diagnostics UPnP	CLI, WEB, Telnet Dual FW Images FW Upgrade: TFTP, HTTP Management Access Filtering: SNMP/Web/Telnet RMON: 1, 2, 3, 9 groups Port Mirroring: One to One, Many to One Remote Ping Cable Diagnostics UPnP	CLI, WEB, Telnet Dual FW Images FW Upgrade: TFTP, HTTP Management Access Filtering: SNMP/Web/Telnet RMON: 1, 2, 3, 9 groups Port Mirroring: One to One, Many to One Remote Ping Cable Diagnostics UPnP
DHCP	Client	Client	Client	Client
Event Log	local flash, remote server	local flash, remote server	local flash, remote server	local flash, remote server
SNMP	v1, 2c, v3	v1, 2c, v3	v1, 2c, v3	v1, 2c, v3
Dimensions (W x H x D)	17.32" x 1.73" x 10.22"	17.32" x 1.73" x 10.23"	17.32" x 1.73" x 10.23"	12.99" x 1.73" x 9.05"
Line Voltage	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz
Power Consumption	Max: 38.40W BTU/h (max): 11.25	Max: 18.29W BTU/h (max): 5.36	Max: 12.48W BTU/h (max): 3.66	Max: 10W BTU/h (max): 2.93
Operating Temperature	32-122°F	32-122°F	32-122°F	32-122°F
Operating Humidity	10-90%	10-90%	10-90%	10-90%
Weight	8.2 lb	12.2 lb	7.56 lb	6.94 lb
Fan Noise	36.1 dBA (≥ 35°C @ 100%) 32.2 dBA (30-34°C @ 75%) 27.6 dBA (<29°C @ 50%)
