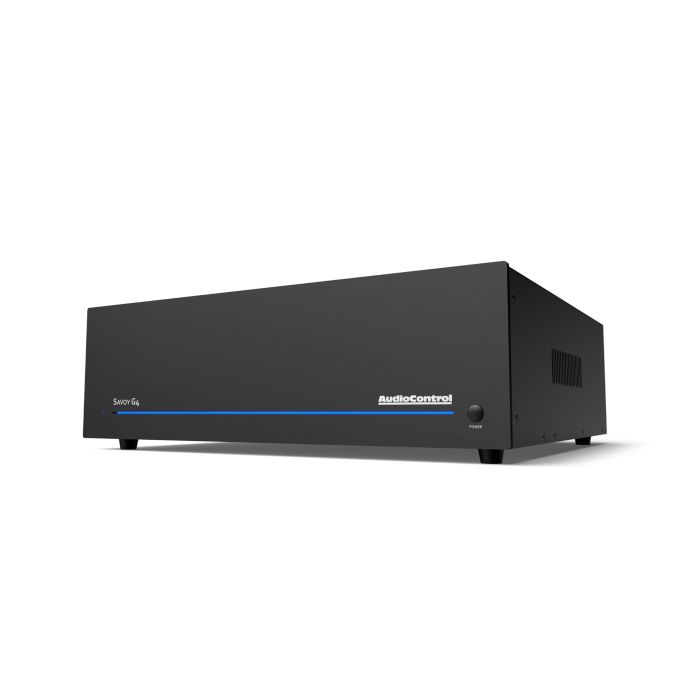

AudioControl ACP-HPA-S7 (Savoy G4) Seven Channel Power Amplifier - 230 watts x 7
SKU# :
ACP-HPA-S7
SKU
ACP-HPA-S7
Skip to the end of the images gallery
- Contact Us : Tel: +44 (0)1296 719 582 / Email: sales@aldoussystems.co.uk
Skip to the beginning of the images gallery
- Contact Us : Tel: +44 (0)1296 719 582 / Email: sales@aldoussystems.co.uk
Built from a legacy of respected premium power amplifiers, AudioControl G4 series amplifiers offer efficient, effortless power to deliver impressive dynamics and highly detailed audio across all channels.
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Savoy G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Savoy G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as a standalone critical listening power amplifier, the Savoy G4 can be configured for anything from a powerful 3-channel listening room to a detailed and dynamic, multichannel home theater.
| INPUTS Inputs: 7 RCA Unbalanced, 7 XLR Balanced Input Sensitivity: 1.42 Vrms for full output Maximum Input Voltage: 2.7 Vrms Input Impedance: 100 kΩ |
CONTROL Remote Power Trigger: +12 VDC or Dry Contact Closure |
| OUTPUTS Amplifier Channels: 7 Power Output (8Ω): 230 watts per channel Power Output (4Ω): 300 watts per channel Power Output (8Ω Bridged Mono): 600 watts Minimum Speaker Load: 4 Ω |
GENERAL Power Consumption (Standby): < 2 W Power Consumption (Idle): 38W Power Consumption (loud listening level): 367W Power Consumption (maximum): 2100W BTU/Hour Output (Standby): 5.6 BTU/hr BTU/Hour Output (Idle): 129 BTU/hr BTU/Hour Output (1/8th power, loud listening level): 477 BTU/hr BTU/Hour Output (maximum): 2507 BTU/hr Protection: clipping, short circuit, thermal, DC offset |
| PERFORMANCE Damping Factor: >450 Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz to 20 kHz) Signal to Noise: >102 dB, A-wtd ref Full Output Frequency Response: 10 Hz -20 kHz, ±1 dB |
WEIGHT & DIMENSIONS Dimensions: 17” W x 16.5” D x 5.25” H (3 U) Weight: 43.0 lbs (19.5 kg) |
| IN THE BOX Savoy G4, Power Cord, rack mounting brackets, Manual, Warranty |
- Award-winning theater amplifier technologies
- Seven-channel home theater amplifier
- Multi-mode operation: 7-channel, 5.1-channel, 5-channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged on select channels
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry
- 5-way Binding Posts
- Unbalanced RCA inputs with pass-through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Pairs perfectly with AudioControl home theater preamplifiers
| SKU | ACP-HPA-S7 |
|---|---|
| Warranty | 5 Years |
| Watts per Channel (4ohm) | 300W |
| 70/100v Output | No |
