EA-AMP-SUB-1D-500R Episode Digital Subwoofer Amplifier w/ Front Panel Display | 500W x 1 Channel

Registered trade customers only can see price

SKU# :

EA-AMP-SUB-1D-500R

SKU

EA-AMP-SUB-1D-500R

Episode Digital Subwoofer Amplifier w/ Front Panel Display | 500W x 1 Channel

Support & Downloads >>>

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Episode^® Digital Subwoofer Amplifier - 500W with Front Panel Display

This digital subwoofer amplifier with front panel display and dual sub outputs runs steady at 500 Watts at 4 ohm, and is fine-tuned with custom EQ settings to be used with our dual 8" in-wall, 10” hardscape, or 12” burial subs.

Front Panel Display

This amp’s front panel screen displays the volume level and other control settings. Access the menu function screen using the selection knob to adjust volume, crossover, phase, and EQ settings. It also allows you to select sound mode, night mode, and power mode settings, and can assign an IR device ID for control system integration. Plus, there is a lock control setting that prevents accidental changes in settings.

Custom EQ Settings

This Episode® amplifier offers flexibility to enable or disable EQ settings. There are 3 custom EQ settings optimized for our subwoofers.

Power Mode Selection

Intelligent power management allows the amp to turn on automatically, either when an audio signal is detected or by using a 12V trigger from your AV receiver or processor. An illuminated front-mounted push button also allows you to turn the amplifier on or off when set to the always-on mode.

Connections

RCA line level inputs and pass-through outputs allow you to connect additional amplifiers, while the 12V trigger input and output allows you to connect another 12V trigger device; the amp also has dual sub outputs in parallel configuration.

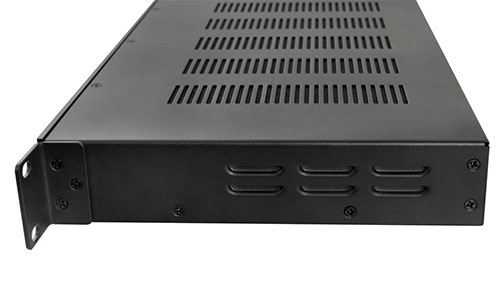

Rackmount Installation Option

Rack ears with three fastening points help eliminate sag when the amp is installed into a rack, while top cover and side panel ventilation slots allow better airflow.

Control System Integration

Features an IR port to connect an IR device. Simply connect an IR repeater or IR controls system to the IR port on the back of the amplifier, and set the device ID in the front panel controls menu.

Subsonic Circuits

A limiter circuit has been incorporated into the amp to protect the connected subwoofer from harsh or damaging distortion that could not only ruin the listening experience, but the woofer

Specifications

Attribute	EA-AMP-SUB-1D-500R
Impedance Input	EA-AMP-SUB-1D-500R	15.000 ohms
Power Output @ 4 ohm	500W RMS
Power Output @ 8 ohm	250W RMS
Sensitivity Input	100 mV for 500W output 4 ohms
Total Harmonic Distortion (THD)	< 0.2%
Frequency Response	"1.1 db at 300 Hz (Flat EQ, LFE Crossover Setting) 1.5 dB at 20 Hz"
12V Trigger	2.6V
Certifications	TUV listed Tested under UL/EN60065 for US and Canada
Dimensions (W x H x D)	16.9" x 1.75" x 8.1
Weight	8.5 lb
Rack Spacing	1U
Signal to Noise Ratio	88 dB (5 kHz bandwidth relative to 500W @ 4 ohms)
Channels	1-Channel
External Trigger Voltage	12V +/-1.2V no load 10.5 V with 100 mA load
