LUM-510-NVR-16CH-2T Luma Surveillance 510 Series NVR

Registered trade customers only can see price

SKU# :

LUM-510-NVR-16CH-2T

SKU

LUM-510-NVR-16CH-2T

Luma Surveillance 510 Series NVR | Black
Support & Downloads >>>

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Luma Surveillance 510 Series NVR

Luma’s 510 Series NVR offers powerful all-around performance and features, including support for higher resolution cameras up to 12MP, 4K TV output, Smart Search capabilities, and long-distance PoE. Its superior PoE capability enables you to create up to 250m runs from the NVR to a camera, as well as the ability to reset individual ports! For additional install convenience, use our free LumaLink remote access service to eliminate less secure port forwarding and DDNS setup, synchronize and manage your devices via OvrC, and so much more.

No Default Password - Starting from firmware version V3.1.2 build 170612, Luma recorders will not come programmed with a default password. This change is due to the security challenges faced when the password is left at its default. You must now create a new password during set up.

OvrC is your remote on-call technician, a free cloud-control app that makes installs a breeze and helps eliminate truck rolls. Plus, a convenient, end-user app allows your customers to fix small problems on their own, reducing calls and making your life easier.

Learn More About Luma + OvrC >>

Intuitive User Interface

Our lightning-fast, responsive user interface is popular with installers and end users alike. Rewind and fast forward, pause, take a snapshot, playback, and zoom to your heart’s content. All of these options are easily controlled with a tap or a swipe in our simple, clean UI.

Dedicated App

iOS or Android, Luma™ has you covered. Our Luma app is built using the same intuitive user interface design, built for mobile devices so you can check on what matters, providing peace of mind – anytime, anywhere.

Customizable HDD Storage

The 510 Series also offers a “no-HDD” option to give you maximum flexibility on the job. Customize your recorder storage capacity however it makes sense for you and your client!

Supports Cameras Up To 12MP

The 510 Series NVRs support cutting-edge camera resolution, as demand for higher-res imaging continues to grow. Each recorder is compatible with cameras up to 12MP.

Deep Control Integration

Our dedicated drivers control the NVR’s on-screen GUI navigation through the HDMI output. All Luma recorders are compatible with Control 4, Crestron, RTI, g! & URC.

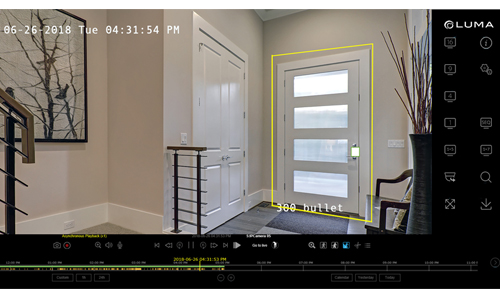

Smart Search

Find smart motion events at any time – even after events have occurred. With Smart Search, users can now search for a line crossing or intrusion box event on video after it's already been recorded! Each event shows separately on the timeline, while the line cross or intrusion box are set at the time of search, depending on what you’re looking for.

Privacy Settings

To further enhance privacy and provide additional peace of mind, customers can now turn individual camera feeds on and off with the flick of a switch. Just send a simple command via control system to the individual camera, and it will black out the camera stream. It’s perfect for setting up Home and Away modes on indoor cameras, or for clients who don’t want to invite Big Brother to their next pool party. You can also enable privacy commands such as stop recording or email notifications for further customization.

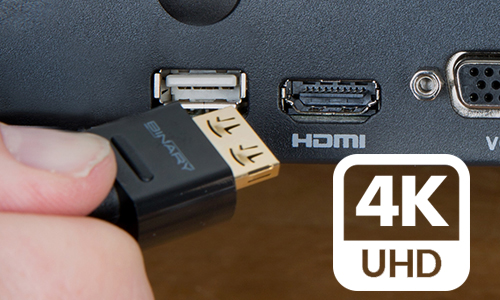

4K HDMI Out

An included HDMI output allows you to hook up your recorder to a television to view any image from the live feed. Better output resolution allows you to maximize the benefits of any high megapixel cameras, eliminating potential hassle.

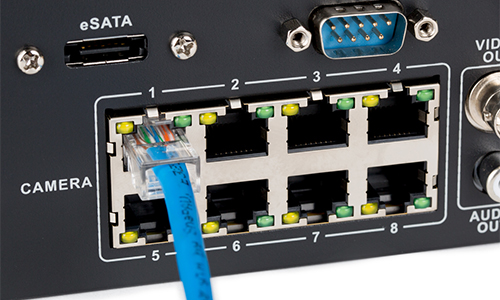

Long-Range PoE

Typical IP systems are no match for Luma’s 510 Series recorders. The 510 recorders feature new and improved PoE with a controllable remote reset function, plus a shockingly long transmission range up to 250m.

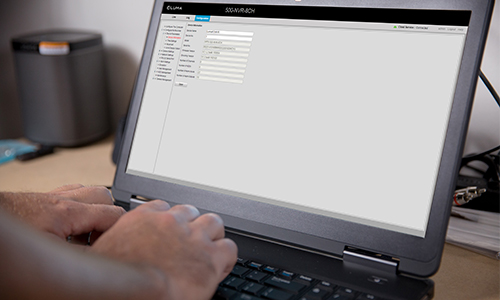

Easy Install

Setup is easy with our Luma utility. Featuring large, easy-to-find icons, access the utility on your PC and view the NVR User Interface through your web browser. You can also use LumaLink to offer a secure, fast setup without DDNS or traditional port forwarding.

LumaLink: Your P2P Setup Solution

Manage all your Luma devices under your OvrC account. Our convenient P2P service, LumaLink, offers faster setup and is more secure than traditional port forwarding and DDNS. Using LumaLink, you can also sync your P2P-enabled devices between OvrC and the Luma app.

Storage-Friendly Encoding

Our 510 NVRs operate using the H.265 video codec. This updated codec uses roughly 40% less data than H.264, achieving the same footage quality while nearly doubling the efficiency of your recorder’s hard drive storage space. Please note: in most IP systems, encoding happens on the camera, so any connected camera must support H.265 to use this feature.

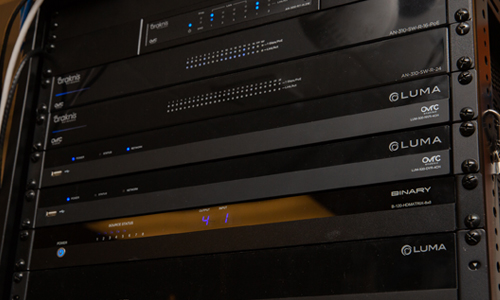

Rack-Mountable Design

Our sleek NVRs mount easily in popular racks, so you can keep cables or connected devices neat and tucked out of the way.

We make high-definition surveillance look easy.

Specifications

Attribute	LUM-510-NVR-16CH-2T	LUM-510-NVR-8CH-1T	LUM-510-NVR-4CH-1T	LUM-510-NVR-16CH-0T	LUM-510-NVR-8CH-0T
HDMI 4K Support	LUM-510-NVR-16CH-2T	LUM-510-NVR-8CH-1T	LUM-510-NVR-4CH-1T	LUM-510-NVR-16CH-0T	LUM-510-NVR-8CH-0T	Yes	Yes	Yes	Yes	Yes
HDMI Compliance	Yes	Yes	Yes	Yes	Yes
POE Ports	16	8	4	16	8
Audio Inputs / Outputs	Audio Output: 1 BNC Audio Input: 1 BNC	Audio Output: 1 BNC Audio Input: 1 BNC	Audio Output: 1 BNC Audio Input: 1 BNC	Audio Output: 1 BNC Audio Input: 1 BNC	Audio Output: 1 BNC Audio Input: 1 BNC
Certifications	UL , FCC, CE	UL , FCC, CE	UL , FCC, CE	UL , FCC, CE	UL , FCC, CE
Dimensions (W x H x D)	17.5" x 3.6" x 13.5"	17.5" x 3.6" x 13.5"	17.5" x 1.8" x 11.4"	17.5" x 3.6" x 13.5"	17.5" x 3.6" x 13.5"
Included Accessories	Remote x1 Power Cord x1 Mouse x1 SATA cables for all IDE ports HDD mounting hardware for all IDE ports Rack mount ears x2 Quick start guide x1	Remote x1 Power Cord x1 Mouse x1 SATA cables for all IDE ports HDD mounting hardware for all IDE ports Rack mount ears x2 Quick start guide x1	Remote x1 Power Cord x1 Mouse x1 SATA cables for all IDE ports HDD mounting hardware for all IDE ports Rack mount ears x2 Quick start guide x1	Remote x1 Power Cord x1 Mouse x1 SATA cables for all IDE ports HDD mounting hardware for all IDE ports Rack mount ears x2 Quick start guide x1	Remote x1 Power Cord x1 Mouse x1 SATA cables for all IDE ports HDD mounting hardware for all IDE ports Rack mount ears x2 Quick start guide x1
Operating Temperature	131° F	131° F	131° F	131° F	131° F
Power Consumption	200W	200W	180W	200W	200W
Rack Mountable	Yes	Yes	Yes	Yes	Yes
RS-232 Ports	1	1	1	1	1
USB Ports	Front: 1x USB2.0 Back: 1x USB 3.0	Front: 1x USB2.0 Back: 1x USB 3.0	Front: 1x USB2.0 Back: 1x USB 3.0	Front: 1x USB2.0 Back: 1x USB 3.0	Front: 1x USB2.0 Back: 1x USB 3.0
Weight	11 lb	8.82 lb	6.61 lb	11 lb	8.82 lb
Rack Spacing	2U	2U	2U	2U	2U
Supported Resolutions	Up to 12MP for IP Cam Resolution	Up to 12MP for IP Cam Resolution	Up to 12MP for IP Cam Resolution	Up to 12MP for IP Cam Resolution	Up to 12MP for IP Cam Resolution
Alarm Features Desc.	Motion Detection Smart Motion Video Loss Detection Pre/Post Recording Alarm Activated Recording	Motion Detection Smart Motion Video Loss Detection Pre/Post Recording Alarm Activated Recording	Motion Detection Smart Motion Video Loss Detection Pre/Post Recording Alarm Activated Recording	Motion Detection Smart Motion Video Loss Detection Pre/Post Recording Alarm Activated Recording	Motion Detection Smart Motion Video Loss Detection Pre/Post Recording Alarm Activated Recording
Browser Support	Internet Explorer(PC) Safari(MAC)	Internet Explorer(PC) Safari(MAC)	Internet Explorer(PC) Safari(MAC)	Internet Explorer(PC) Safari(MAC)	Internet Explorer(PC) Safari(MAC)
Alarm Contact Inputs/Outputs	Input: 16 In, Output: 4 Out	Input: 16 In, Output: 4 Out	Input: 4 In, Output: 1 Out	Input: 16 In, Output: 4 Out	Input: 16 In, Output: 4 Out
DDNS Feature	Yes	Yes	Yes	Yes	Yes
E-Mail Feature	Yes	Yes	Yes	Yes	Yes
ESATA Connection	up to 6TB per port	up to 6TB per port	up to 6TB per port	up to 6TB per port	up to 6TB per port
Network / Ethernet Desc.	Ethernet: 10/100M/1000M Network IP: Static/Dynamic/PPPoE Incoming Bandwidth: 160Mbps Outgoing Bandwidth: 256Mbps Remote Connections: up to 128	Ethernet: 10/100M/1000M Network IP: Static/Dynamic/PPPoE Incoming Bandwidth: 80Mbps Outgoing Bandwidth: 256Mbps Remote Connections: up to 128	Ethernet: 10/100M/1000M Network IP: Static/Dynamic/PPPoE Incoming Bandwidth: 80Mbps Outgoing Bandwidth: 160Mbps Remote Connections: up to 128	Ethernet: 10/100M/1000M Network IP: Static/Dynamic/PPPoE Incoming Bandwidth: 160Mbps Outgoing Bandwidth: 256Mbps Remote Connections: up to 128	Ethernet: 10/100M/1000M Network IP: Static/Dynamic/PPPoE Incoming Bandwidth: 80Mbps Outgoing Bandwidth: 256Mbps Remote Connections: up to 128
Hard Drive Bays (Internal)	up to 4HDDs upt to 6TB each default: 2TB	up to 4HDDs upt to 6TB each default: 1TB	up to 2HDDs upt to 6TB each default: 1TB	up to 4HDDs upt to 6TB each default: 0TB	up to 4HDDs upt to 6TB each default: 0TB
Hard Drive Storage (Internal)	SATA HDD up to 6TB	SATA HDD up to 6TB	SATA HDD up to 6TB	SATA HDD up to 6TB	SATA HDD up to 6TB
Record Mode Desc.	Manual / Schedule / Alarm / Motion / VCA	Manual / Schedule / Alarm / Motion / VCA	Manual / Schedule / Alarm / Motion / VCA	Manual / Schedule / Alarm / Motion / VCA	Manual / Schedule / Alarm / Motion / VCA
Motion Detection	Yes	Yes	Yes	Yes	Yes
OSD & Control Interface Desc.	IR, RS-232, IP Mouse Control Web Browser Control	IR, RS-232, IP Mouse Control Web Browser Control	IR, RS-232, IP Mouse Control Web Browser Control	IR, RS-232, IP Mouse Control Web Browser Control	IR, RS-232, IP Mouse Control Web Browser Control
Channels	16	8	4	16	8
Recording Frame Rate (FPS)	Up to 30 FPS @ 8MP	Up to 30 FPS @ 8MP	Up to 30 FPS @ 8MP	Up to 30 FPS @ 8MP	Up to 30 FPS @ 8MP
Resolution (TVLs)	up to 12MP	up to 12MP	up to 8MP	up to 12MP	up to 12MP
RS485	Yes	Yes	Yes	Yes	Yes
Search Features Desc.	Time Search Event Search Smart Search	Time Search Event Search Smart Search	Time Search Event Search Smart Search	Time Search Event Search Smart Search	Time Search Event Search Smart Search
Setup & Functions Desc.	Daylight Saving Time Privacy Mask PTZ Control: through RS-485 and/or IP RS-485 Interface Digital Zoom: up to 16x Language: English RS-485/PTZ Control: 2 pin pluggable screw terminal	Daylight Saving Time Privacy Mask PTZ Control: through RS-485 and/or IP RS-485 Interface Digital Zoom: up to 16x Language: English RS-485/PTZ Control: 2 pin pluggable screw terminal	Daylight Saving Time Privacy Mask PTZ Control: through IP Digital Zoom: up to 16x Language: English	Daylight Saving Time Privacy Mask PTZ Control: through RS-485 and/or IP RS-485 Interface Digital Zoom: up to 16x Language: English RS-485/PTZ Control: 2 pin pluggable screw terminal	Daylight Saving Time Privacy Mask PTZ Control: through RS-485 and/or IP RS-485 Interface Digital Zoom: up to 16x Language: English RS-485/PTZ Control: 2 pin pluggable screw terminal
Simulataneous Connections	128	128	128	128	128
Display Split Window	1, 4, 8, 16, 1+5, 1+7	1, 4, 8, 1+5, 1+7	1, 4	1, 4, 8, 16, 1+5, 1+7	1, 4, 8, 1+5, 1+7
External USB Backup Device	up to 128 GB	up to 128 GB	up to 128 GB	up to 128 GB	up to 128 GB
Video Resolution	VGA: up to 1080p HDMI: up to 4k	VGA: up to 1080p HDMI: up to 4k	VGA: up to 1080p HDMI: up to 4k	VGA: up to 1080p HDMI: up to 4k	VGA: up to 1080p HDMI: up to 4k
Video Compression	H.265, H.264, H.264+, MJPEG	H.265, H.264, H.264+, MJPEG	H.265, H.264, H.264+, MJPEG	H.265, H.264, H.264+, MJPEG	H.265, H.264, H.264+, MJPEG
Operation Modes	Hexaplex - Simultaneous Live View Record Playback Control System Control Remote Access Backup	Hexaplex - Simultaneous Live View Record Playback Control System Control Remote Access Backup	Hexaplex - Simultaneous Live View Record Playback Control System Control Remote Access Backup	Hexaplex - Simultaneous Live View Record Playback Control System Control Remote Access Backup	Hexaplex - Simultaneous Live View Record Playback Control System Control Remote Access Backup
LED Indicators	Power, Status, and Network	Power, Status, and Network	Power, Status, and Network	Power, Status, and Network	Power, Status, and Network
Power Input	100 ~ 240VAC, 50 ~ 60Hz	100 ~ 240VAC, 50 ~ 60Hz	100 ~ 240VAC, 50 ~ 60Hz	100 ~ 240VAC, 50 ~ 60Hz	100 ~ 240VAC, 50 ~ 60Hz

More Information

More Information
SKU	LUM-510-NVR-16CH-2T
Warranty	3 Year Limited Warranty
NVR Channels	16
