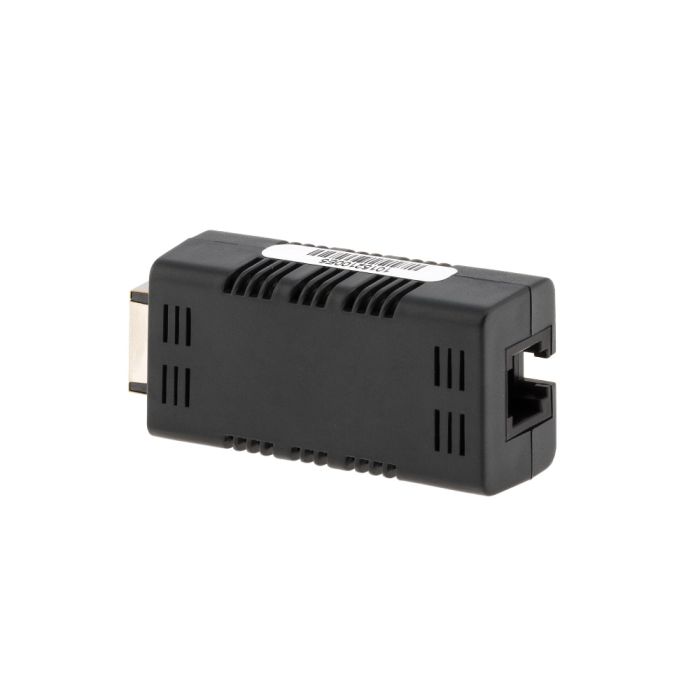

NVT Phybridge Phylink Adapter - Pack of 6

Phylink: Long Reach single pair UTP adapter (15 Watts); no local power option. Supports IEEE 802.1X. 6-Pack - 5 YR warranty included

Model	PhyLink Adapter
Part Number	NV-PLLK-6 (sold as 6 pack)
802.1X Support	Phylink: Long Reach single pair UTP adapter (15 Watts); no local power option. Supports IEEE 802.1X. 6-Pack - 5 YR warranty included
Dimensions	2.56” x1.1” x 0.71” (LxWxH) 6.5cm x 2.8cm x 1.8cm (LxWxH)
Weight	0.78 oz. (22 g)
Interface PoLRE Switch Side	1 RJ11 port: CAT3 unshielded single twisted pair cable. Between the wall plate and adapter, you can reuse the existing line cord when doing a DNIC/POTS displacement.
Interface Ethernet side: for IP endpoint device	1 RJ45 port: 10 Base-T
Power Consumption	0.9W
Power Injection (PoE)	DC voltage on RJ45 port: 58V max 37V when 1200ft (365m) away from its PoLRE Switch powers Class 1, Class 2 and some Class 3 IEEE 802.3af compliant IP devices
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 95% (non-condensing) at 95°F (35°C) ADD
Casing	Plastic
Wattage Delivery	22W

EMC	Emissions: FCC Part 15, ICES-003, EN 55032:2012 Class B Immunity: EN 55024:2010
Safety	UL 60950-1 2nd Ed, CAN/CSA C22.2 No. 60950-1-07 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018
Environment	RoHS Directives 2011/65 and 2015/863
